Meet your new smart, small and versatile encoder
(yes, nothing less)
PYKO-OUT
Meet PYKO-out: the cost-effective, small form factor, rack-mountable stereo IP audio decoder that makes no compromise with audio quality. PYKO-out is your best asset to spread the word for paging, background music, live announcement applications but also STL. Smart and handy, it features two balanced analog mono outputs and a USB port for storing local playlists on a USB memory stick. It decodes standard RTP streams in a large range of audio formats. ALong with its PYKO-in buddy, it offers a cost-effective solution for establishing IP audio links. Cherry on the cake, it can be remotely controlled through ASCII commands sent through TCP.
Cost effective STL
Smart audio IP decoder
No compromise on audio quality
Balanced analog audio I/Os, +18dBu max level
Easy as A, B
Configuration & control
Local storage for playlists and pre-recorded announcement
3 decoding priorities with automatic failover
Key features
Analog I/Os
Standard IP audio streaming
Tunneling of auxiliary data (serial, GPI’s)
Remote control via WEB GUI, ASCII commands over TCP or via serial port
Specifications
CONFIGURATION
- Size 140mm x 41mm x 145mm (3 in a 1U rack)
- Weight 434 g 477 g
- Operating temperature / humidity: 0°C to 55°C / 0% to 70% relative humidity, non condensing
- Power supply : 24VDC +/-20%
outputs
- Analog line outputs: 1 stereo
- Maximum output level / impedance: +4 dBu / +18 dBu / < 100 ohms
- Frequency response : 0/-2 dB <20-20000Hz>
- THD+Noise: < – 84 dB @ -2dBFS <20-20000Hz>
- SNR: <- 98 dB <20-20000Hz>
- Headphone out: 1 (3.5 mm Jack)

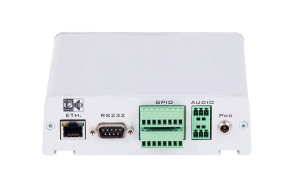

connectors
- Analog audio: Euroblock connector
- Ethernet Port: 10/100 Mbit Ethernet (RJ45)
- RS232: subD 9-pin male
- USB: external and internal USB1.1 interface for memory key (FAT16*)
- GPIO: Euroblock connector
Software, format, protocols
- IP Stream format: RTP, shoutcast, icecast
- Audio formats:
- MP3 (variable bit rates up to 320 kBit)
- AAC LC, HE-AACv1 (limited to 32 kHz), HE AACv2 (limited to 32 kHz)
- G.711(µLaw/aLaw at 8 kHz)
- PCM (16bit at 8 to 48 kHz)
Management
- html pages via built-in web server
- TCP/UDP ASCII commands to control the device through the network
- Audio-ManagerVu middleware
Network Protocols
- HTTP, TCP/UDP commands, RTP, DHCP, DNS, IGMP
Q&A
PYKO
I can't access to the PYKO web pages anymore, what can I do ?
At first you can try to reset it to the factory settings by pressing 5 seconds with a tip in the hole which is in the middle of the PYKO front panel. If it not fix the issue, ask for the PYKO rescue procedure to the technical support team.
How can I use a USB memory stick on PYKO-out to play sound files ?
PYKO-out is able to play a playlist stored on a USB memory stick. This stick can be connected either to the front panel USB port, or to the internal USB port. These two USB ports can’t be used simultaneously. The USB stick must be FAT 16 formatted.
The firmware to be used is the Playout-extended firmware. The playlist must be an m3u playlist, and its name has to be entered in the URL field of the decoding priority 2 or decoding priority 3 (example: backup-playlist.m3u).
The mp3 sound files and playlist files (stream priority 3) must be located in the /bk directory of USB stick. The playlist and audio file names must have a maximum of 24 characters.
The safe characters are pure ASCII letters (a-z A-Z), digits (0-9) and underscore (_). The playslit is played when no audio source is available on the previous decoding priority(ies).
My PYKO goes ON and OFF as if there was an issue with the power supply.
You may want to check the power supply connector on the rear panel of PYKO (PWR connector).
The conductive core of this connector is split in two parts: insert a thin device (like a screwdriver) between the two parts of the conductive core to slightly enlarge the space and minimize the risk of unexpected ON/OFF cycles due to too little space between these parts.
How to decode an RTP stream on PYKO OUT?
The parameters of the stream(s) to be decoded have to be configured from the Audio menu, stream priority 1, stream priority 2, stream priority 3 WEB pages.
The URL field allows declaring the stream to be decoded on the selected priority. For receiving a unicast stream (point to point link) the syntax is: rtp://0.0.0.0:port>. Example: rtp://0.0.0.0:5400.
For receiving a multicast stream (point to multipoint link) the syntax is: rtp://multicast IP@:port>. Example: rtp://224.10.0.1:5400.
What value must be set for the parameter “Latency” on PYKO-out?
The latency value is selectable from 1 to 10. This value is to be set according to the network jitter and the audio format. In MPEG audio formats, this value must be set to a minimum value of 6.
For other formats (PCM, G711), this latency parameter can be set to low values on high quality network (low jitter). PYKO-out displays in real time the jitter-margin on its WEB page. Adjust the Latency value so that the displayed jitter margin value remains higher than 0.
Can PYKO decode the AAC format?
The AAC audio compression is supported by PYKO-out only with the firmware “Playout-extended”. Supported AAC flavors are AAC-LC, HE-AACv1 (limited to 32 kHz), and HE-AACv2 (limited to 32 kHz). The AAC must be in ADTS mode. The RTP payload must be 126. Note that PYKO-in does not support AAC encoding.
How to decode a web radio with PYKO?
The PYKO OUT EXTENDED firmware decodes a stream from Shoutcast or Icecast servers. The supported formats are MPEG and AAC. Type the URL provided by the web radio server. Example: http://stream.ouifm.fr/ouifm-high.mp3
Is MP3 variable bit rate supported in PYKO ?
Yes, the constant bit rate and the variable bit rate are supported for MP3, from streams and files.
