THE LATEST GENERATION
MULTI-CHANNEL LOW PROFILE
PCIe SOUND CARD

ALP882e

Universally acclaimed, unchanged Digigram features are still up to meet your challenges. Your favorite trusted PCX and VX cards essentials still fuel the new Digigram ALP-X range.

Same quality, same high standards. A new technology core for this new cards range will push back the limits, offer enhanced performances, and simplify users’ daily routines with ALP-X sound cards.

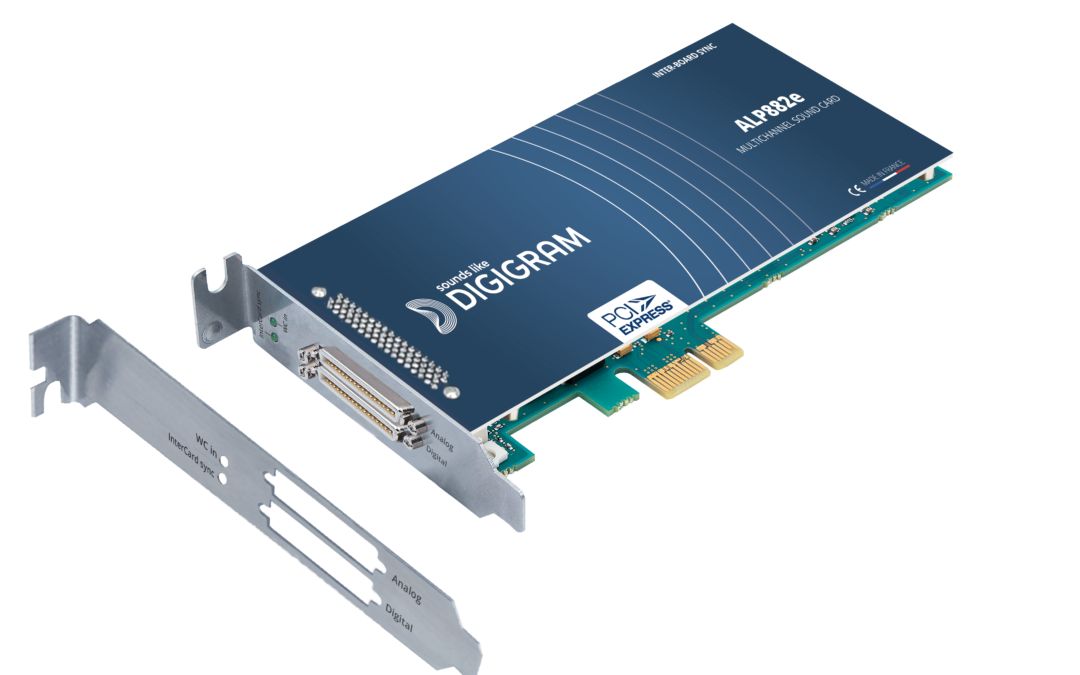

ALP882e is a versatile multichannel PCIe sound card for professional PC-based audio systems running under Windows and Linux environments. With its reliability, stability and compact low profile design, ALP882e is ideally suited for mission-critical applications in the broadcast, industrial, and military markets. This card is ready for any challenge. It offers eight balanced analog line inputs plus four stereo AES3 inputs, eight balanced analog outputs plus four AES3 output, and 8 GPIs / 8 GPOs.

The on-board zero latency mixer features 32 I/O channels (8 analog, 8 AES3, 16 software play/record). Each of the 32 output channels has its own mix from the 32 inputs.

DOWNLOADS

BENEFITS

SPECIFICATIONS

For Windows
and Linux

Iconic Rock-solid
& life-long

Pristine Digigram
sound quality

Multi-applications

Hiccup free reliability

Benefits

Outstanding audio quality and performance

Made for regular application or custom design with help of Digigram control API

Rock-solid, life-long, hiccup free reliability
Fits in any type of PC / workstation / server with a PCIe slot
Drivers evolve with Windows and Linux updates

Specifications

Format

Dimensions
L: 168 mm x H: 69 mm x l: 20 mm L: 6.6 inch; H: 2.7 inch; l: 0.8 inch

Form Factor
Low profile
(standard and low profile brackets included)

Expansion Bus
PCI Express TM (PCIe TM) x1 (x2, x4, x8, x16 compatible)

Drivers

Supported OS

The supported Windows flavors are :

  • Windows as of version 10 20H2
  • Windows Server as of version 2019

Linux (from Linux Kernel 4.9)

Drivers
Windows: Asio, Wasapi/DirectSound

Linux: Alsa, Libgpiod

One Driver Package
Multi-application and multi-card API available

Control panel

 Digigram ALP-X ASIO Settings (On Windows)
• Asio Control Panel: up to 8 ALP-X cards
(intercard synchronization)
• Select I/Os used through ASIO
(others can be used through Wasapi)

Digigram ALP-X Manager (On Windows)
• A unique control panel for the whole ALP-X range
• Manages up to 8 ALP-X cards

Main functions
Zero latency FPGA-based 32×32 mixer
Adjustment of input and output levels
Mixing before monitoring and recording (32 mix buses)
Clock & sync selection
GPIO status

HARDWARE SPECIFICATIONS

INPUTS
Analog
• 8 balanced line inputs
• A/D Converters: 24 bits / 192 kHz
• Maximum input level/impedance: +24 dBu / >10 kΩ
• Adjustable analog gain: from -24 dB to +16 dB, in 0.5 dB steps
• Adjustable digital gain: from -90 dB to +12 dB in 0.1 dB steps

Digital
• 4 stereo AES3 inputs
• Adjustable digital gain: from -90 dB to +12 dB, in 0.1 dB steps
• Sample rate (kHz): 32, 44.1, 48, 64, 88.2, 96, 128, 176.4, 192
• Hardware Sample Rate Converter frequency ratio: 1:8 to 7,5:1

Others
• 1 AES11 synchronization input
• 1 Word Clock synchronization input
• 8 dry contact GPIs

OUTPUTS
Analog
• 8 servo-balanced line outputs
• D/A Converters: 24 bits / 192 kHz
• Max level / Impedance: +24 dBu / <100 Ohms
• Adjustable digital gain: from -90 dB to +12 dB, in 0.1 dB steps

Digital
• 4 stereo AES3 outputs
• Adjustable output gain: from -90 dB to +12 dB, in 0.1 dB steps
• Sample rate (kHz): 32, 44.1, 48, 64, 88.2, 96, 128, 176.4, 192

Other
• 8 relay GPOs (0.5 A, 48 VCC)
• 1 Word Clock output

ANALOG AUDIO PERFORMANCES

Frequency response
@48 kHz: 20 Hz – 20 kHz
Inputs : +/- 0.83 dB
Outputs : +/- 0.57 dB

SNR
Inputs
A-Weighted: >115 dBA
Unweighted: >112 dB
Outputs
A-Weighted: >109 dBA
Unweighted: >106 dB

THD + Noise (@22 dBu/1 kHz)
Inputs: <-96 dB @24 dBu (1 kHz)
Outputs: <-96 dB @24 dBu (1 kHz)

Crosstalk
Inputs
128 dB @1 kHz / -107 dB @15 kHz
Outputs
-127 dB @1 kHz / -112 dB @15 kHz

Channel phase
Inputs: < 0.01° @1 kHz
Outputs: < 0,02° @ 1kHz

SAMPLE FORMAT

PCM (8, 16, 24, 32 and 32 float bits), Float IEEE754

CABLE & CONNECTORS SPECIFICATIONS

Breakout cable for analog I/Os
– Length 1 m, XLR connectors

Breakout cables for digital I/Os
– Length: 1 m
– XLR for I/Os and AES11 sync input
– BNCs for Word clock I/O
– 2 x D-Sub 25 for GPIs and GPOs

Inter board synchronization

SYNCHRONIZATION SOURCES
  • Internal clock (kHz)
    11.025, 16, 22.05, 24, 32, 44.1, 48, 64, 88.2, 96, 128, 176.4, 192
  • AES11 (kHz)
    32, 44.1, 48, 64, 88.2, 96, 128, 176.4, 192
  • Word Clock input (kHz)
    32, 44.1, 48, 64, 88.2, 96, 128, 176.4, 192
  • Intercard clock* (possibility to connect up to 8 ALP-X cards
    linked with an inter-board sync cable)
